TT751 APACH AW095A 1/2in Air Impact Wrench 950ft-lb Twin Hammer
TT751 APACH AW095A 1/2in Air Impact Wrench 950ft-lb Twin Hammer
Description
π§ Product Overview
Brand-new APACH AW095A 1/2-inch drive pneumatic impact wrench, designed for automotive, agricultural, motorcycle, assembly and general industrial fastening work.
The AW095A uses a twin-hammer impact mechanism and a lightweight composite and magnesium body. It delivers up to 950ft-lb maximum torque, with a stated 1,200ft-lb nut-busting torque for loosening resistant fasteners.
β Confirmed Specifications
β’ Brand: APACH
β’ Model: AW095A
β’ Tool type: Pneumatic impact wrench
β’ Square drive: 1/2 inch
β’ Impact mechanism: Twin hammer
β’ Working torque at 5 seconds: 800ft-lb / 1,080Nm
β’ Maximum torque at 10 seconds: 950ft-lb / 1,283Nm
β’ Nut-busting torque: 1,200ft-lb / 1,620Nm
β’ Free speed: 8,500rpm
β’ Maximum bolt capacity: 1 inch / M25
β’ Average air consumption: 5.5CFM / 158L/min
β’ Operating pressure: 6.2bar / 90psi
β’ Air inlet: 1/4 inch
β’ Recommended hose internal diameter: 3/8 inch
β’ Overall length: 179mm
β’ Weight: 1.7kg
β’ Sound-pressure level: 91.5dBA
β’ Vibration level: 8.1m/sΒ²
βοΈ Key Features
β’ Twin-hammer impact mechanism
β’ Composite and magnesium construction
β’ Japanese-steel anvil
β’ Three forward power positions
β’ One reverse position
β’ Handle exhaust
β’ Compact pistol-grip design
β’ Bottom-mounted air inlet
β’ Trigger operation
β’ Rubberised grip sections
β’ Designed for straightforward maintenance and servicing
π οΈ Typical Applications
Suitable for compatible work involving:
β’ Automotive wheel and suspension fasteners
β’ Motorcycle maintenance
β’ Agricultural machinery
β’ Workshop assembly
β’ Industrial production and servicing
β’ General nut and bolt removal
Actual suitability depends on the fastener, socket rating, airline capacity and required tightening torque.
β οΈ Air-Supply Requirements
For full performance, use a regulated compressed-air supply capable of maintaining approximately:
β’ 6.2bar / 90psi
β’ 5.5CFM / 158L/min average air consumption
β’ 3/8-inch internal-diameter hose
β’ Suitable 1/4-inch air fitting
Restricted couplings, undersized hoses or insufficient compressor output may reduce torque.
π¦ Included

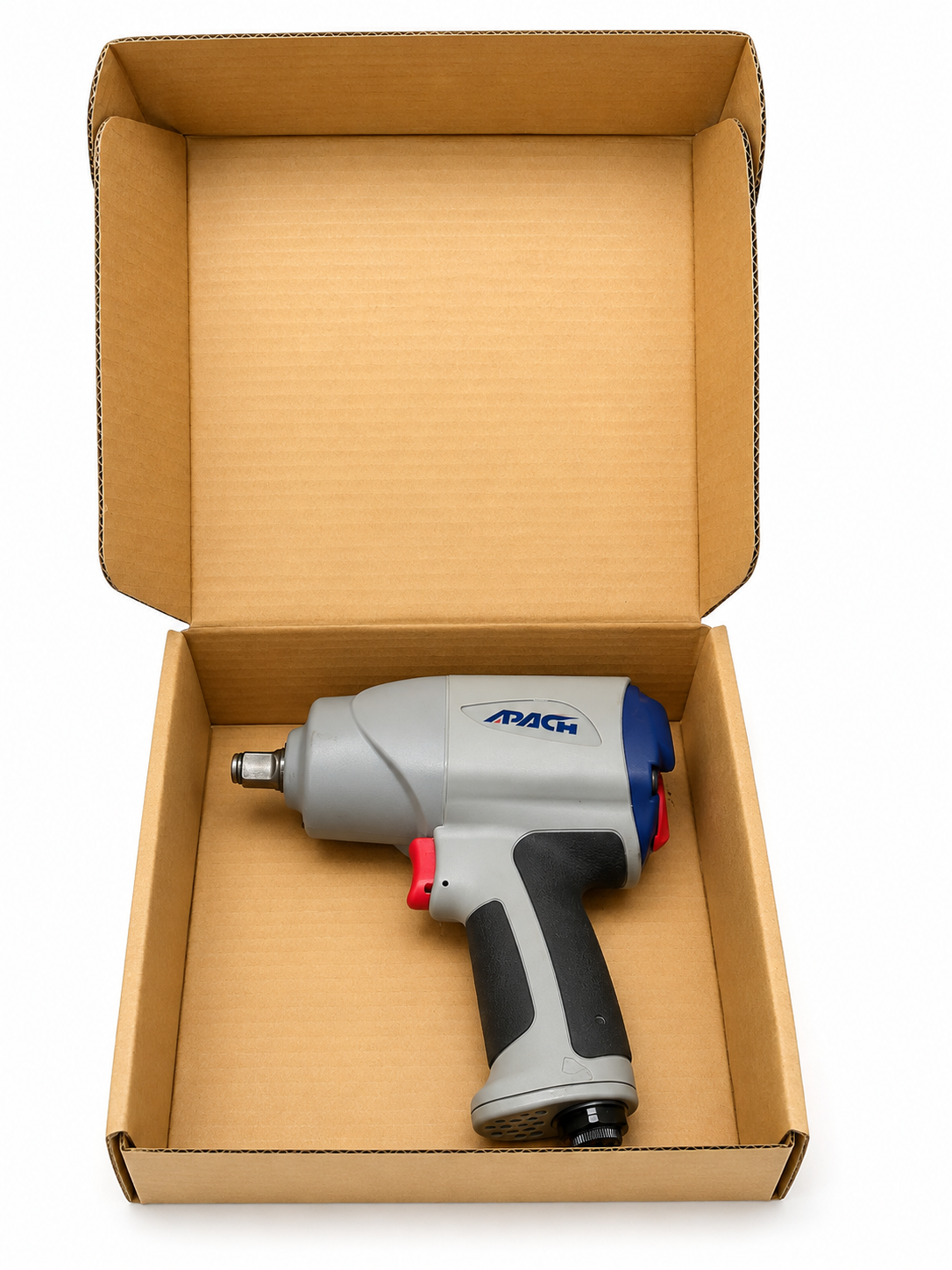

β’ 1 x APACH AW095A 1/2-inch air impact wrench
β’ Plain cardboard storage box
βΉοΈ Condition
Brand new and unused.
