TT746 Tie Rod Track Rod End Ball Joint Separator Pickle Fork Tool
TT746 Tie Rod Track Rod End Ball Joint Separator Pickle Fork Tool
Description
π§ Product Overview

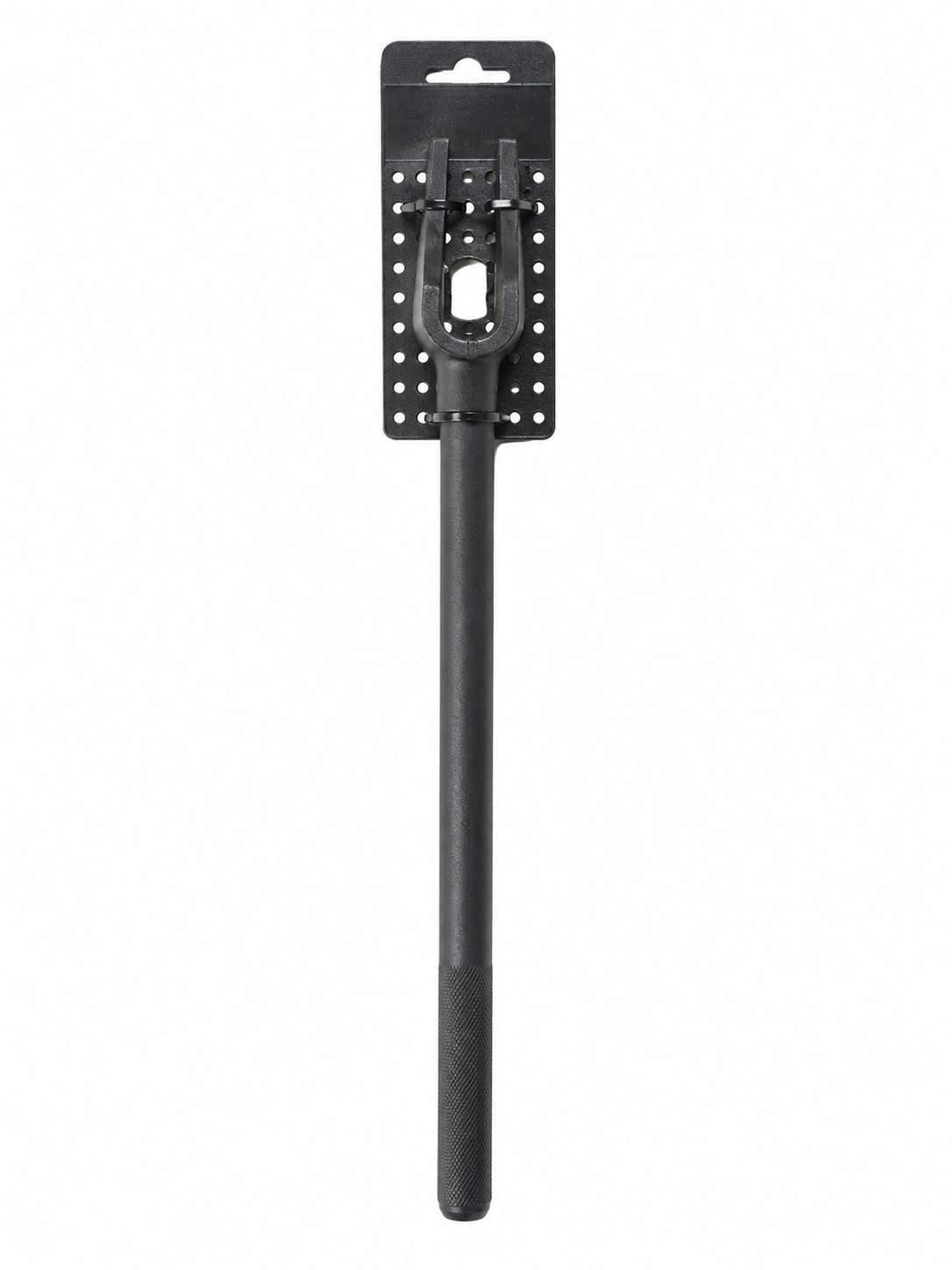

Unbranded pickle-fork separator tool designed for separating compatible tapered automotive joints, including track rod ends, tie rod ends and certain ball joints.
The forked end is positioned around the joint stud and driven between the joint and its mounting point. The tapered fork progressively forces the two components apart as the tool is struck at the end of the handle.
β Key Features
β’ Pickle-fork style joint separator
β’ Suitable for compatible track rod and tie rod end joints
β’ May also be used on compatible ball joints and steering linkages
β’ Long steel handle for access and controlled striking
β’ Tapered fork profile for progressive separation
β’ One-piece manual impact-operated design
β’ Knurled section near the end of the handle
β’ Unbranded tool
π οΈ Typical Applications
Designed to assist with separating compatible tapered joints during work involving:
β’ Track rod ends
β’ Tie rod ends
β’ Steering linkage joints
β’ Suspension ball joints
β’ Drag links
β’ Other compatible tapered automotive joints
Suitability depends on the fork opening, joint dimensions and available access around the component.
βοΈ Operating Method
- Remove the joint retaining nut as required by the vehicle repair procedure.
- Position the fork around the tapered joint stud.
- Align the tool so the tapered fork sits between the joint and its mounting surface.
- Strike the end of the handle progressively using a suitable hammer.
- Continue until the tapered joint separates from its mounting point.
Pickle-fork separators can damage the rubber dust boot during removal. This type of tool is therefore most appropriate where the joint is being replaced or where damage to the boot is acceptable.
π¦ Included
β’ 1 x Pickle-fork tie rod and ball joint separator tool
β’ Retail hanging holder
βΉοΈ Condition
Brand new and unused.
This is an unbranded manual joint-separation tool.
