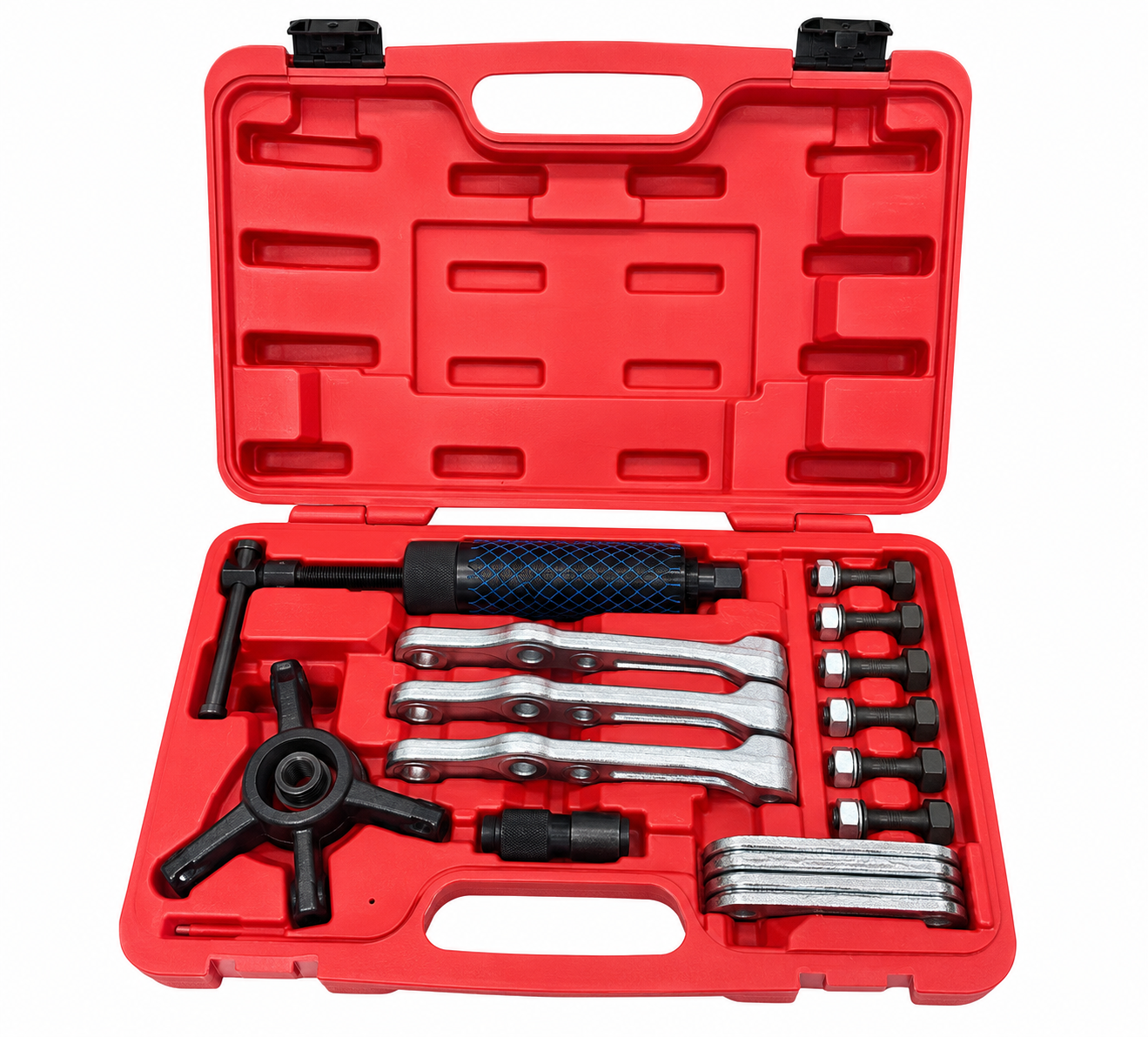

TT744 12 Ton Multi-Purpose Hydraulic Gear Bearing Puller Separator Kit
TT744 12 Ton Multi-Purpose Hydraulic Gear Bearing Puller Separator Kit
Description
π§ Product Overview
Unbranded multi-purpose hydraulic puller kit designed for controlled removal of compatible gears, bearings, bearing races, sprockets, pulleys and similar press-fitted components.
The kit combines a 12-ton hydraulic ram, interchangeable pulling legs, combination crosshead, extension rods and separator plates. Its modular layout allows the components to be assembled into different pulling arrangements depending on the size, position and accessibility of the component being removed. Comparable versions of this exact tool format are described as multi-purpose 12-ton hydraulic gear puller systems for gears, bearings, races and sprockets.
β Key Features
β’ Rated pulling capacity: 12 tons
β’ Self-contained hydraulic ram
β’ Combination crosshead for multiple puller arrangements
β’ Three interchangeable pulling legs
β’ Six steel separator plates
β’ Two ram extension rods
β’ Six securing screws, nuts and washers
β’ Suitable for internal and external pulling configurations where the supplied components fit
β’ Mechanical hydraulic operation without a separate external pump
β’ Supplied in a fitted red plastic storage case
β’ Unbranded tool kit
βοΈ Hydraulic Ram
The supplied hydraulic ram provides up to 12 tons of pulling force.
Confirmed ram specification:
β’ Material: S45C steel
β’ Ram diameter: approximately 37.7mm
β’ Overall ram length: approximately 168mm
β’ Thread specification: 1", 16 TPI
β’ Operated using the supplied T-handle
β’ Integrated safety-focused hydraulic design
Equivalent manufacturer specifications state that this style of ram has a T-type hexagonal operating head and should be operated by hand or with a suitable wrench rather than an impact wrench.
π© Combination Puller Assembly
The combination crosshead and three forged pulling legs can be configured around compatible gears, pulleys, bearings and similar components.
The legs are described as:
β’ Quantity: 3
β’ Material: SCM440 alloy steel
β’ Drop-forged construction
β’ Hardened to approximately 45β47 HRC
SCM440 drop-forged legs are used on comparable 12-ton hydraulic puller systems to provide the strength required under high pulling loads.
The puller may be configured using two or three legs where the component and crosshead arrangement allow. The jaws should be positioned evenly and securely behind the component before hydraulic force is applied.
π οΈ Separator Plate System
Six steel plates are included to create a bearing-separator arrangement around compatible bearings, races, gears and other components where standard puller jaws cannot obtain a secure grip.
The plates can be built up to suit the required reach and positioned behind the component before connecting them to the hydraulic pulling assembly.
The exact usable spread and reach depend on:
β’ The selected plate configuration
β’ Available clearance behind the component
β’ Component diameter
β’ Extension-rod arrangement
β’ Secure engagement of all pulling points
π§ Extension Components
Two carbon-steel extension rods are included:
β’ 1" Γ 1 1/4" extension rod
β’ 1" Γ 2" extension rod
These extend the effective reach of the hydraulic ram where the standard ram length does not reach the centre of the shaft or component being removed.
π§° Typical Applications
Designed for compatible workshop, automotive, agricultural, engineering and machinery applications involving removal of:
β’ Gears
β’ Bearings
β’ Bearing races
β’ Pulleys
β’ Sprockets
β’ Hubs
β’ Sleeves
β’ Other press-fitted components
Suitability depends on component size, available access, correct jaw engagement and the strength of the surrounding assembly.
π¦ Included
β’ 1 x 12-ton hydraulic ram
β’ 1 x Combination crosshead
β’ 3 x Combination pulling legs
β’ 6 x Steel separator plates
β’ 1 x 1" Γ 1 1/4" extension rod
β’ 1 x 1" Γ 2" extension rod
β’ 6 x Securing screws, nuts and washers
β’ Associated pulling and support components pictured
β’ Fitted red plastic storage case
β οΈ Operating Guidance
Before applying hydraulic pressure:
β’ Confirm that all jaws or separator plates are engaged evenly
β’ Keep the ram aligned with the centre of the shaft
β’ Tighten all nuts and fasteners securely
β’ Apply force gradually
β’ Do not exceed the stated 12-ton capacity
β’ Do not use an impact wrench to operate the hydraulic ram
β’ Wear suitable eye protection and keep clear of the loaded puller assembly
βΉοΈ Condition
Brand new and unused.
This is an unbranded multi-purpose hydraulic puller kit supplied in a fitted red storage case.
